Brand Name : | CHIFOON |
Model Number : | CF200S |
Certification : | ISO |
Price : | USD 699-799/set |
Payment Terms : | T/T |
Supply Ability : | 10000 sets/Month Grain Collecting and Bagging Machine |
Delivery Time : | 5-20 work days |

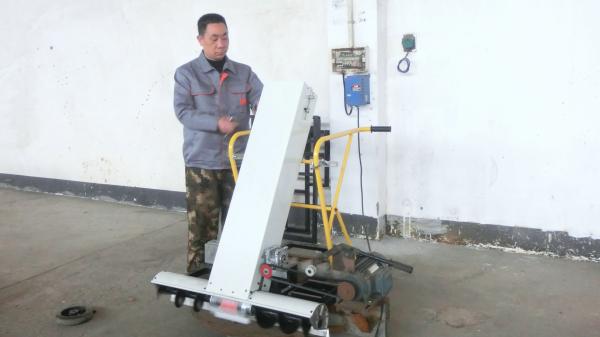

Self Propelled Rice Grain Collector Post Harvest Agricultural Machine
Baifeng Machinery Factory was formerly known as Yiyang Fuli
Machinery Manufacturing Co., Ltd., which is mainly engaged in the
developing and producing of agricultural machinery products, such
as: Grain collecting and bagging machines; Grain suction machine
flexible hose; Crawler tractors; rice mills; Crusher; Sprayers, and
Feed pellet machines; Seeders, Fertilizer distributor; Water pump
and etc.
Mr. Lee Tao, the founder, has been working in the agricultural
machinery industry since 2003. He is committed to improve
traditional agricultural production mode and to innovate farming
tools, which could promote farmer working efficiency and reduce
farmers working strength.
Model | CF-200S |
Supporting power | 170F gasoline engine |
Min. specific fuel consumption | 394g/KW.h |
Work efficiency | 6000-8000Kg/h |
Gather the Max. width | 100cm |
Driving mode | micro-tillage machine centrifugal clutch + double worm gear reducer + Angle transmission gear box |
Walking mode | self-walking |
Auxiliary functions | folding type (divided into working position, manual pushing position and folding position) |
Dimensions(L*W*H) | 140*122*128cm |
Total weight | 95KG |
Wooden packing | 132*112*60cm 95/110KG |
Loading | 32 sets/20" container 72 sets/40" container |
Warm Prompt
Observe the window when the grain is loaded to 70%. When the grain is loaded to 70%, please stop moving and idle for 3 seconds to finish the residual grain in the transmission tube and keep the conveying tube smooth!
No. | Advantages |
1 | USA POM brand material used for the collecting plate to ensure 30% higher efficiency than normal ones. |
2 | The design of broadening Band Carrier has the ability to bear stronger and more durable. |
3 | Miro-Tiller Clutch enjoys 3 Years of guarantee. |
4 | The 5th generation double belt for high temperature heat-resisting. |
![]() |
